Premium Quality
REF: T2S-2Y

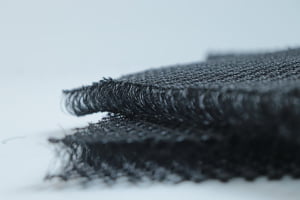

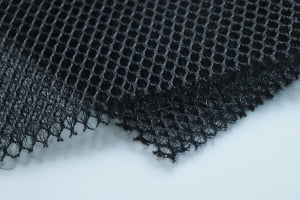

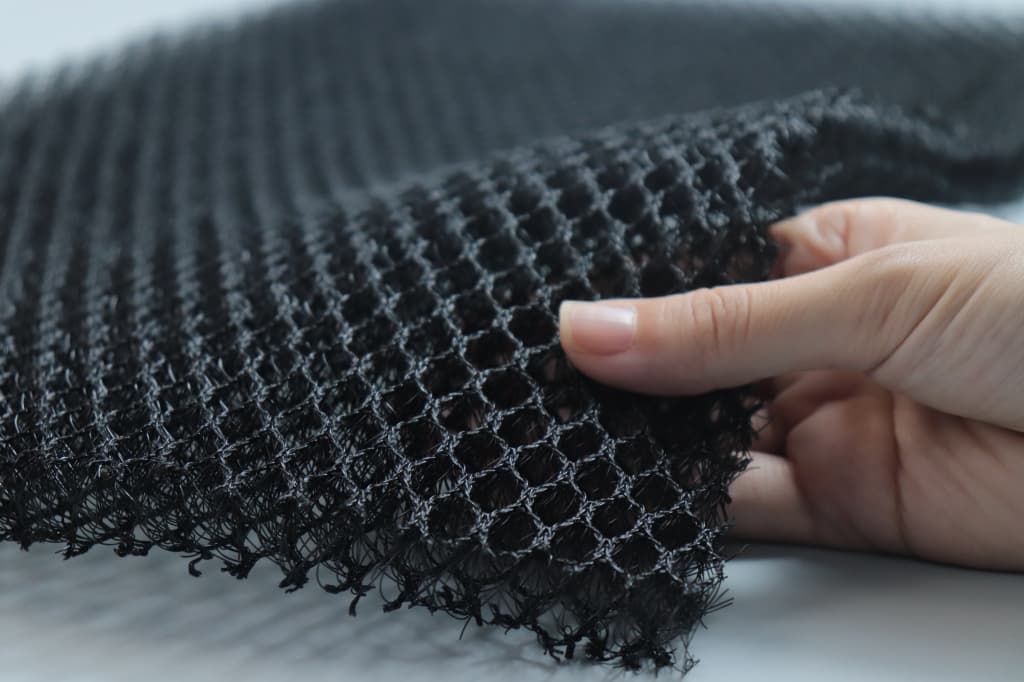

3d mesh fabric T2S-2Y in jet black

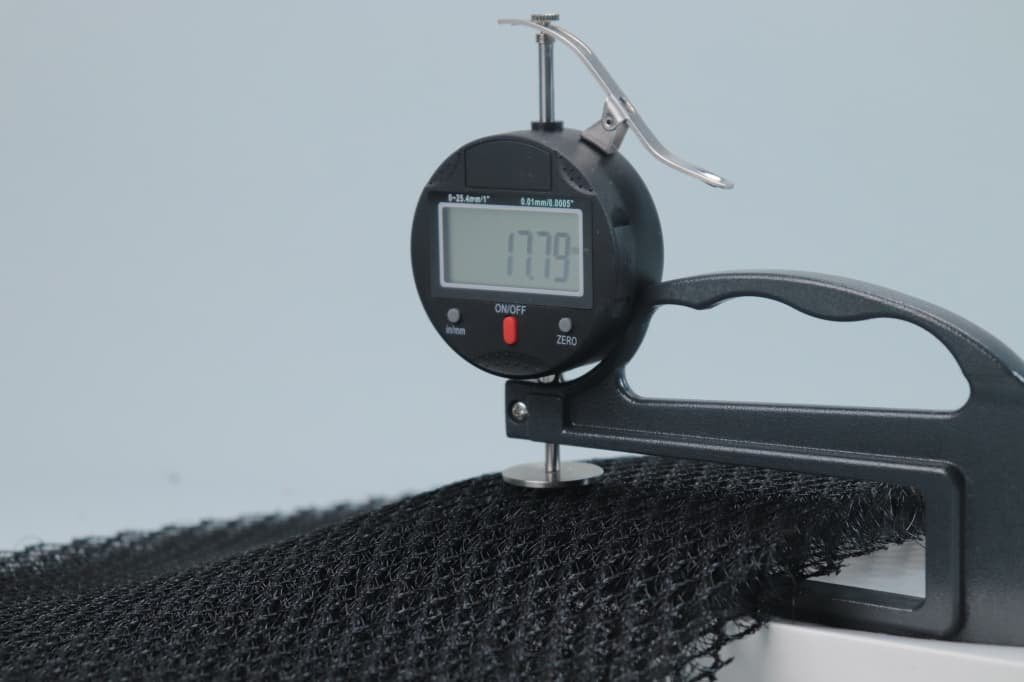

Exceptionally open and lightweight for its 17.7mm thickness, T2S-2Y combines large through-openings, supportive thick monofilaments, a smooth surface, low water retention, and rapid drying.
Standard lead time: 15-25 days
Quick-Dry Marine Mattress Layer

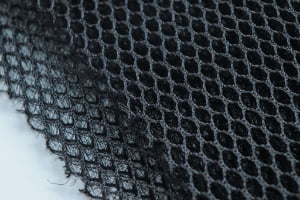

Large 12 × 8mm through-oval openings and sparse internal yarns maximize airflow, while low water retention and rapid drying make T2S-2Y particularly suitable for Marine Mattress applications.
Lightweight Outdoor Cushion Core

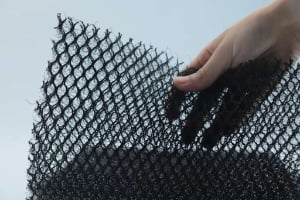

A high proportion of monofilament on both surfaces keeps this thick structure relatively lightweight and smooth, while thicker internal monofilaments provide dependable support for Outdoor Cushion Cores.
Breathable Boat and RV Applications
The 17.7mm open structure creates substantial ventilation space for Boat Seat Cushions and RV Mattresses, while almost no lengthwise stretch helps maintain dimensional stability in finished constructions.
Washable Cooling Mat Structure
Low water retention, rapid drying, large through-openings, and good black colorfastness make the fabric suitable for washable Pet Cooling Mats and Camping Mats used in ventilated applications.
Technical Specifications
Yarn Specifications
| Type | Face | Middle | Bottom |
|---|---|---|---|
| FDY | 25S | 25S | 25S |
Frequently Asked Questions
Technical specifications, application guidance, and ordering information for Mefiss high-performance spacer mesh solutions.
Why is T2S-2Y so breathable despite its 17.7mm thickness?

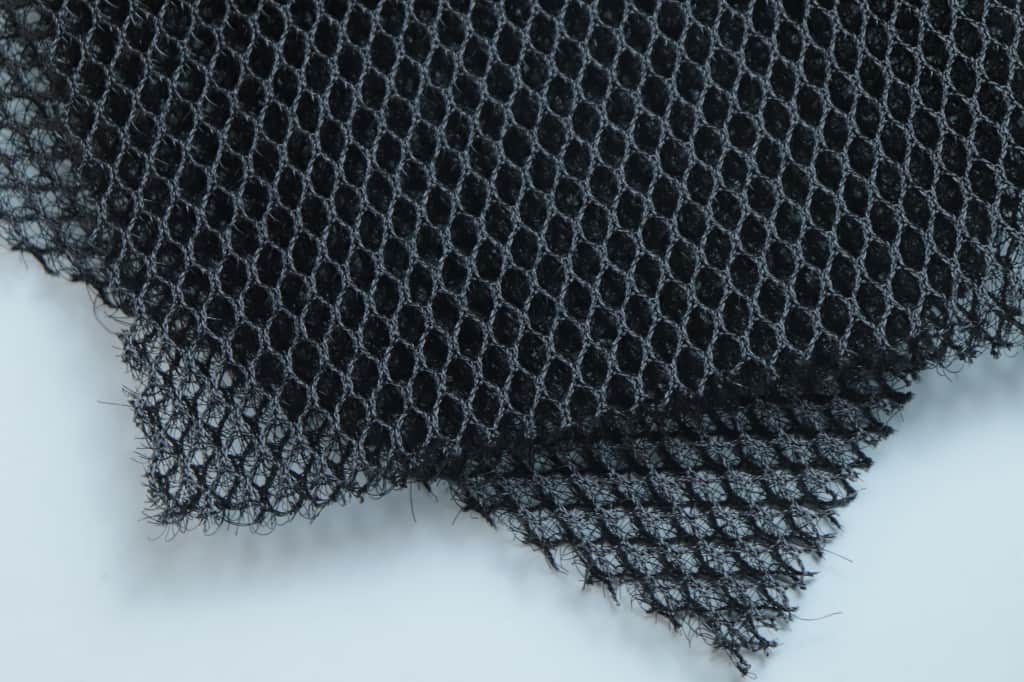

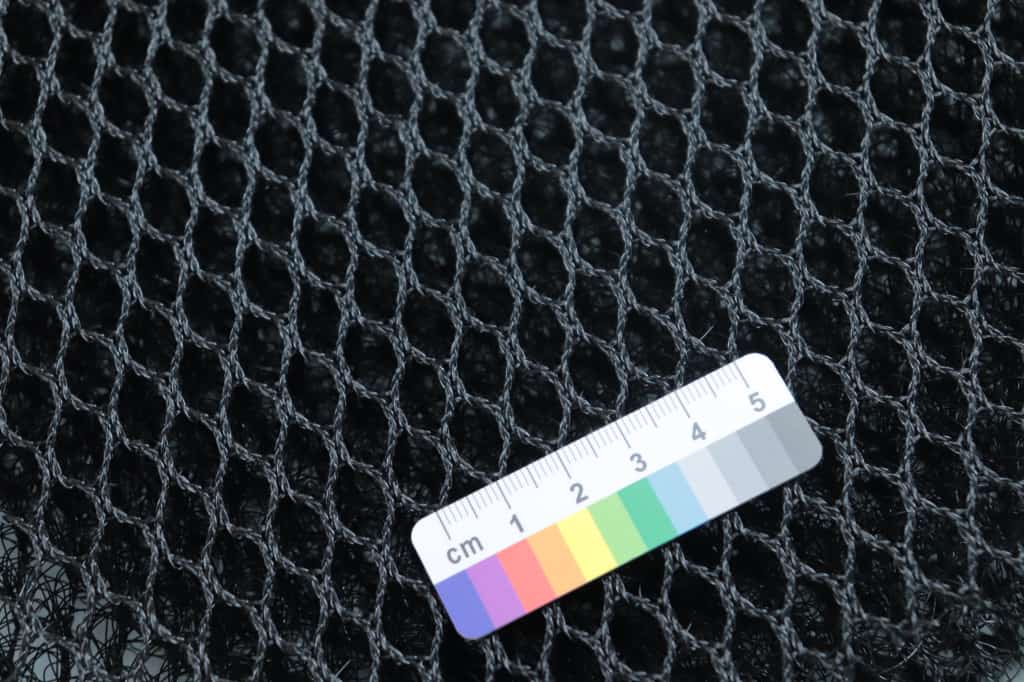

Both surfaces feature aligned 12 × 8mm oval openings, while the internal yarn density is relatively sparse. Together, these features create highly open airflow paths through the thick structure.
How does T2S-2Y provide support with fewer internal yarns?

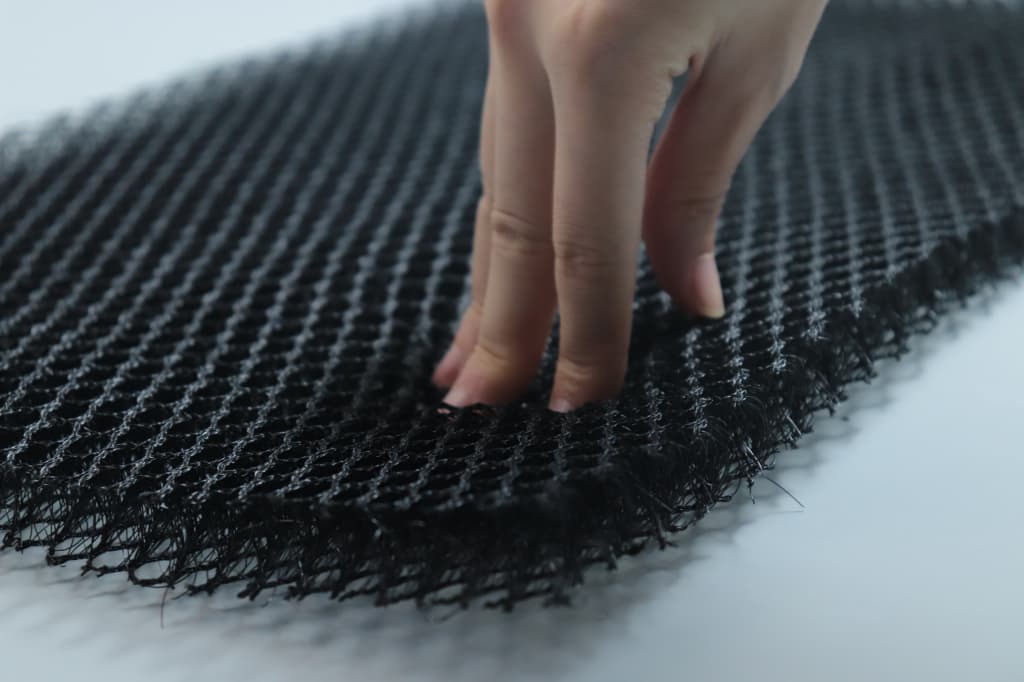

Although the internal monofilament density is lower than conventional 3D mesh, the monofilaments themselves are considerably thicker, allowing the fabric to maintain good structural support with a more open construction.
Why is it suitable for Marine and Outdoor products?
Its large openings, low water retention, rapid drying, supportive structure, and wash- and sunlight-resistant black coloration are particularly useful for Marine Mattresses, Boat Seat Cushions, and Outdoor Cushion Cores.
What should manufacturers know about its stretch?
T2S-2Y has medium crosswise stretch but almost no lengthwise stretch. This directional behavior provides flexibility across the width while helping control lengthwise deformation in mattresses, cushions, and mats.
Still have questions?
Production Process
Advanced manufacturing processes ensuring consistent quality
Warping
Yarns are arranged in order and prepared for knitting, which helps build a stable foundation for fabric quality.
Spacer Mesh Knitting
The fabric is knitted into a three-dimensional spacer structure that gives it breathability, cushioning, and support.
Greige Fabric Inspection
Before dyeing and finishing, we inspect the greige fabric carefully to check appearance, mesh consistency, and possible defects.
Heat Setting Process
This step improves dimensional stability and helps control width, thickness, mesh shape, and fabric handfeel.
Dyeing & Finishing
The fabric is dyed and finished according to the product requirement, so the final material has the expected color and performance.
