Premium Quality
REF: T2S-2A
3D mesh T2S-2A in 20mm

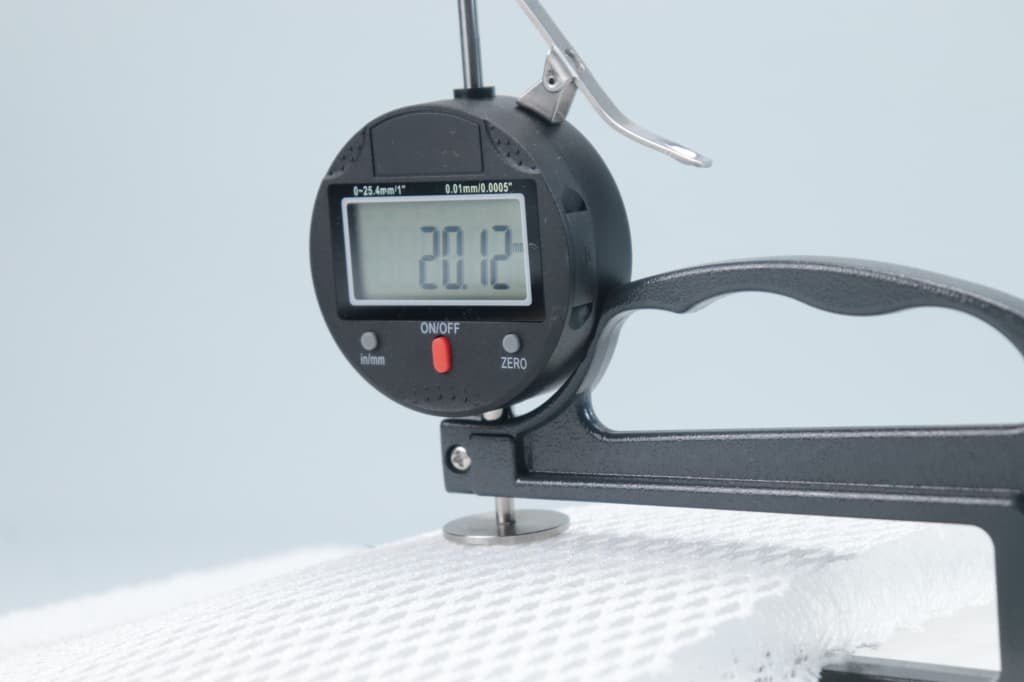

Designed as a high-support spacer layer, this 20.1mm 3D mesh fabric combines ultra-open airflow, strong resilience, quick drying performance, and durable cushioning support for breathable composite applications.
Standard lead time: 15-25 days

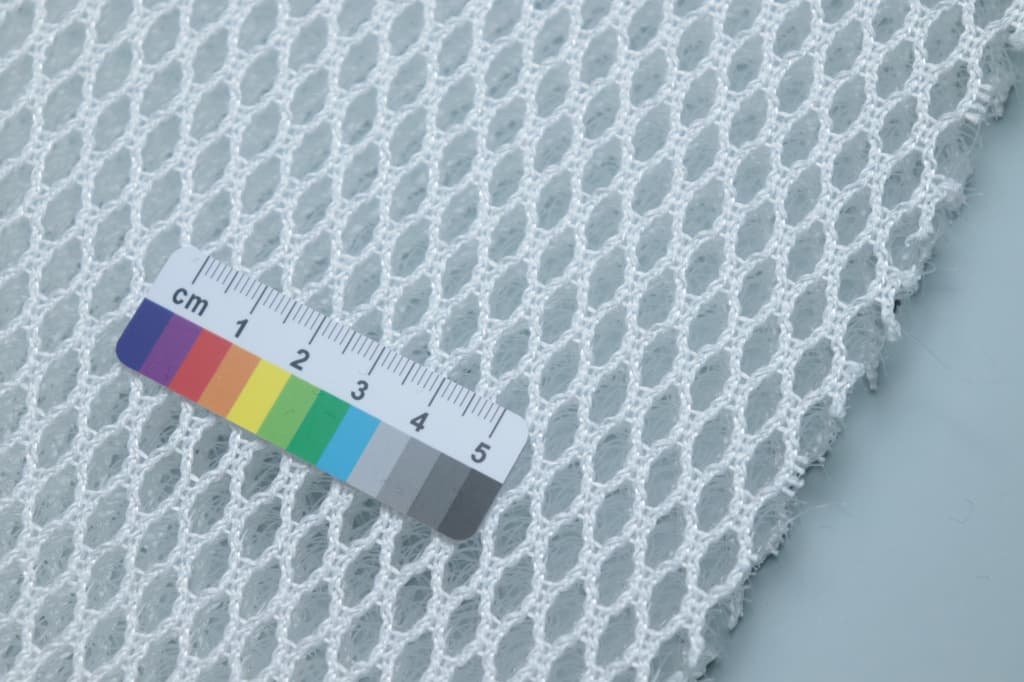

The 20.1mm thick 3D mesh fabric features large oval through-holes on both front and back surfaces, measuring 8mm × 5mm, creating an extremely breathable structure with excellent airflow, heat dissipation, and moisture release.

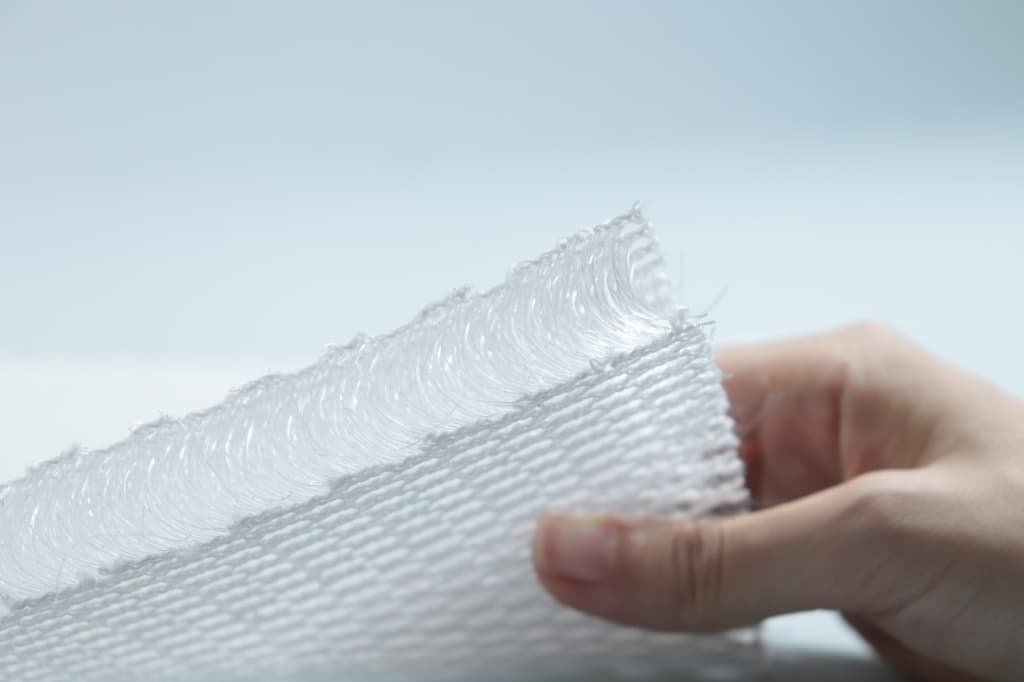

The high-density coarse monofilament spacer layer provides strong internal support and excellent rebound recovery, helping the fabric resist collapse under repeated compression while maintaining long-lasting three-dimensional performance.
With its ultra-open mesh construction and quick drying characteristics after washing, this fabric is ideal for cooling mat and breathable cushion structures where continuous ventilation and temperature control are required.
The slightly rough surface texture makes this fabric more suitable as an internal spacer layer rather than a direct contact surface. Its strong support and airflow performance make it suitable for seat cushion core, mattress ventilation layer, and outdoor cushion core applications.
Technical Specifications
Yarn Specifications
| Type | Face | Middle | Bottom |
|---|---|---|---|
| FDY | 900D | 26S | 900D |
Frequently Asked Questions
Technical specifications, application guidance, and ordering information for Mefiss high-performance spacer mesh solutions.
Why is this 20.1mm 3D mesh fabric suitable for seat cushion core applications?
The extra-thick 20.1mm structure provides strong cushioning support and excellent rebound performance. The open oval-hole design allows continuous airflow, making it suitable as a breathable support layer inside seat cushion products.
Can this fabric be used as a direct skin-contact material?
No. Due to its slightly rough surface texture, this fabric is recommended for use as an internal spacer layer rather than a direct contact fabric. It is designed to provide ventilation, support, and cushioning inside composite products.
What makes this fabric suitable for mattress ventilation layer applications?
The large through-hole structure on both sides creates excellent air circulation channels throughout the fabric. Combined with strong compression recovery and quick drying performance, it helps improve ventilation inside mattress structures.
Can Mefiss provide finished products using this 3D mesh spacer fabric?
Yes. This fabric is suitable as an internal support layer for breathable cushions, mattresses, and cooling products. For related finished textile products, our own hometextile factory, Mefiss Hometex, can provide complete solutions from product development to manufacturing.
How do I choose the right GSM?
GSM affects fabric weight, support, handfeel, and cost. Lower GSM fabrics are lighter and more economical. Higher GSM fabrics usually feel stronger, thicker, and more supportive.
For light and breathable use, 2AD2-7B, 140GSM or AC1, 175GSM can be used. For stronger support, AD1, 290GSM, BD2D-7A, 430GSM, or BC2-6B3, 570GSM are better choices.
How do you control width, GSM, and thickness in bulk production?
Each fabric has process records, including yarn specification, yarn count, needle arrangement, setting temperature, speed, width, and tension. During finishing, we check actual width, GSM, thickness, mesh shape, handfeel, and elasticity.
For fabrics like BD2D-11B, BD2-6N6, and BC2-6B3, process stability is especially important because handfeel, stretch, and thickness are key performance points.
Still have questions?
Application Scenarios
Discover how spacer mesh performs across different industries
Medical Products
For medical products, our spacer mesh fabric and 3D mesh fabric help improve comfort, airflow, and support in daily care use. They are suitable for masks, wheelchair cushions, slings, and other products that require breathability, resilience, durability, and easy-care performance.
Hometextile Products
For home textile products, our spacer mesh fabric and 3D mesh fabric help create bedding with better airflow, stable support, and lasting comfort. They are widely used in mattress top layers, inner support layers, mattress pads, and pillows to reduce stuffiness and improve sleep performance.
Pet Products
For pet products, our spacer mesh fabric and 3D mesh fabric help create items that are lighter, more breathable, and more comfortable in daily use. They are suitable for harnesses, saddle pads, and pet carriers that need airflow, resilience, and lasting durability.
Customer Case Studies
Real-world applications and success stories
Testing & Certifications
Quality assurance through rigorous testing standards
SGS 3D Mesh Test
3D mesh fabric passed formaldehyde, pH, odor and azo dye testing by SGS, ensuring compliance with international safety and environmental standards. Report No. SL520252456827TX
BSCI Audit Certification
Finished product factory passed amfori BSCI social compliance audit, ensuring ethical production, labor standards, and responsible manufacturing management systems. Report No. JSASCN267899904
OEKO-TEX Certification
Certified dyeing factory meets OEKO-TEX Standard 100 Class I requirements for harmful substances control, ensuring baby-safe and skin-friendly fabric usage. Certificate No. BJ015198008
Production Process
Advanced manufacturing processes ensuring consistent quality
Warping
Yarns are arranged in order and prepared for knitting, which helps build a stable foundation for fabric quality.
Spacer Mesh Knitting
The fabric is knitted into a three-dimensional spacer structure that gives it breathability, cushioning, and support.
Greige Fabric Inspection
Before dyeing and finishing, we inspect the greige fabric carefully to check appearance, mesh consistency, and possible defects.
Heat Setting Process
This step improves dimensional stability and helps control width, thickness, mesh shape, and fabric handfeel.
Dyeing & Finishing
The fabric is dyed and finished according to the product requirement, so the final material has the expected color and performance.
